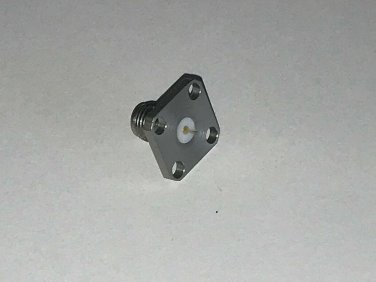

New Lot of 10 individually packaged AMP Tyco TE 1052898-1 RF Threaded SMA Jack Connectors. RF Interface : SMA RF Connector Style : Jack Connector System : Cable-to-Panel Number of Coaxial Contacts : 1 Impedance (Ω): 50 Operating Frequency (GHz): 18 Number of Panel Mounting Holes : 4 Sealable : No Port Configuration : Single Port Number of Positions : 1 Cable Connector Orientation : Straight Body Material : Stainless Steel Body Finish : Passivated RF Connector Center Contact Plating Material : Gold RF Connector Center Contact Material : Beryllium Copper Connector Product Type : Connector Assembly RF Connector Contact Configuration : Captivated Contacts Panel Mount Feature Type : Flange RF Connector Coupling Mechanism : Threaded Connector Mounting Type : Panel RF Contact Captivation Method : Epoxy Detent : Without Panel Attachment Style : Rear Mount Product Length : 9.53 mm [ .375 in ] RF Connector Mated Outer Diameter (Approximate) : 6.35 mm [ .25 in ] Tab Width : .51 mm [ .02 in ] Operating Frequency (GHz): 18 Dielectric Material : TFE Fluorocarbon
